IPE

IPE PROFİLLER

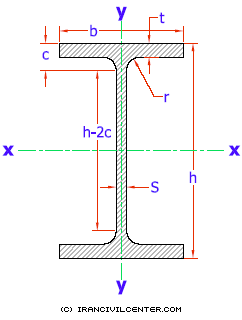

Üretim aralığı:
● Yükseklik (h): 80 mm ile 600 mm arasında
● Genişlik (b): 46 mm ile  220 mm arasında.
● Kalınlık (s): 3.8 mm ile 12 mm arasında.

Teknik Özellikler:

● Yükseklik (h) tolerans:
    h= 80mm - 120mm arası ±2.0 mm
    h= 140mm - 240mm arası ±3.0 mm -2.0mm
    h=270mm - 360mm arası ±3.0 mm
    h=400mm - 500mm arası ±4.0 mm
    h=550mm - 600mm arası ±5.0 mm

● Genişlik (b) tolerans:
    b= 46mm - 64mm  arası ±2.0 mm
    b=73mm - 91mm arası ±3.0mm -2.0mm
    b=100mm - 160mm arası  ±3.0 mm
    b=170mm - 220mm arası  ±4.0 mm

● Kalınlık (s)  tolerans:
    s= 3.9mm - 9.4 mm arası ±0.5 mm
    s= 10.1mm - 11.5mm arası ±0.6 mm
    s= 12.2mm - 13.7mm arası ±0.7 mm
    s= 14.4mm - 15.3 mm arası ±0.8 mm
    s= 16.2mm - 18.0mm arası ±0.9 mm
    s= 19.0mm - 21.6mm arası ±1.0 mm

Üretim Standartları:
TS 910/5, DIN 1025/5

Design properties of IPE profiles for S275 steel class (γ_M0 = 1.00, units = mm)

		Profile dimensions					Area properties					Inertia properties about major axis y-y				Inertia properties about minor axis z-z				Torsional & warping properties				Axial force & shear resistance			Bending major axis y-y		Bending minor axis z-z		Buckling curve		Section classification
Profile	Drawin	Depth h [mm]	Width b [mm]	Web thickness tw [mm]	Flange thickness tf [mm]	Root radius r [mm]	Weight m [kg/m]	Perimeter P [m]	Area A [mm2]	Shear area z-z Av,z [mm2] (for η=1.2)	Shear area y-y Av,y [mm2]	Second moment of area Iy [×106 mm4]	Radius of gyration iy [mm]	Elastic section modulus Wel,y [×103 mm3]	Plastic section modulus Wpl,y [×103 mm3]	Second moment of area Iz [×106 mm4]	Radius of gyration iz [mm]	Elastic section modulus Wel,z [×103 mm3]	Plastic section modulus Wpl,z [×103 mm3]	Torsion constant IT [×103 mm4]	Torsion modulus WT [×103 mm3]	Warping constant Iw [×106 mm6]	Warping modulus Ww [×103 mm4]	Design plastic axial force resistance Npl,Rd [kN]	Design plastic shear force resistance z-z Vpl,Rd,z [kN]	Design plastic shear force resistance y-y Vpl,Rd,y [kN]	Design elastic bending moment resistance Mel,Rd,y [kNm]	Design plastic bending moment resistance Mpl,Rd,y [kNm]	Design elastic bending moment resistance Mel,Rd,z [kNm]	Design plastic bending moment resistance Mpl,Rd,z [kNm]	Buckling about major axis y-y	Buckling about minor axis z-z	Web in pure bending about major axis y-y	Web in pure uniform compression	Flanges in uniform compression due to axial force or bending moment

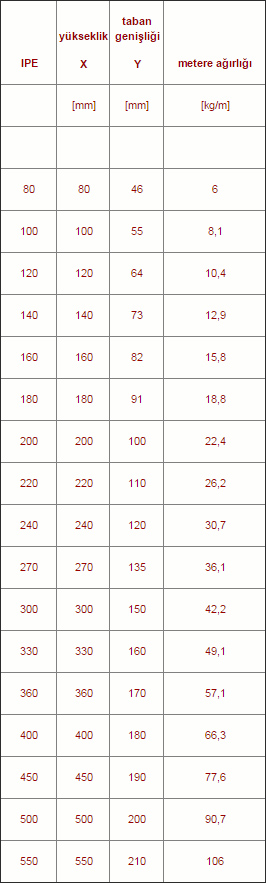

IPE80		80	46	3.8	5.2	5	6.00	0.328	764	358	478	0.8014	32.4	20.03	23.22	0.08489	10.5	3.691	5.818	6.727	1.770	115.1	135.2	210.19	56.79	75.96	5.51	6.38	1.01	1.60	a	b	1	1	1
IPE100		100	55	4.1	5.7	7	8.10	0.400	1032	508	627	1.710	40.7	34.20	39.41	0.1592	12.4	5.789	9.146	11.53	2.812	342.1	266.8	283.89	80.73	99.55	9.41	10.84	1.59	2.52	a	b	1	1	1
IPE120		120	64	4.4	6.3	7	10.4	0.475	1321	631	806	3.178	49.0	52.96	60.73	0.2767	14.5	8.646	13.58	16.89	3.839	872.0	483.4	363.28	100.11	128.03	14.56	16.70	2.38	3.73	a	b	1	1	1
IPE140		140	73	4.7	6.9	7	12.9	0.551	1643	764	1007	5.412	57.4	77.32	88.34	0.4492	16.5	12.31	19.25	24.01	5.109	1951	808.2	451.72	121.34	159.95	21.26	24.29	3.38	5.29	a	b	1	1	1
IPE160		160	82	5.0	7.4	9	15.8	0.623	2009	966	1214	8.693	65.8	108.7	123.9	0.6831	18.4	16.66	26.10	35.30	7.060	3889	1252	552.51	153.33	192.68	29.88	34.06	4.58	7.18	a	b	1	1	1
IPE180		180	91	5.3	8.0	9	18.8	0.698	2395	1125	1456	13.17	74.2	146.3	166.4	1.009	20.5	22.16	34.60	47.23	8.911	7322	1882	658.55	178.64	231.17	40.24	45.76	6.10	9.51	a	b	1	1	1
IPE200		200	100	5.6	8.5	12	22.4	0.768	2848	1400	1700	19.43	82.6	194.3	220.6	1.424	22.4	28.47	44.61	68.46	12.22	12746	2683	783.31	222.28	269.91	53.44	60.68	7.83	12.27	a	b	1	1	1
IPE220		220	110	5.9	9.2	12	26.2	0.848	3337	1588	2024	27.72	91.1	252.0	285.4	2.049	24.8	37.25	58.11	89.82	15.22	22310	3874	917.69	252.15	321.35	69.30	78.49	10.24	15.98	a	b	1	1	1
IPE240		240	120	6.2	9.8	15	30.7	0.922	3912	1914	2352	38.92	99.7	324.3	366.6	2.836	26.9	47.27	73.92	127.4	20.55	36680	5354	1075.70	303.95	373.43	89.18	100.83	13.00	20.33	a	b	1	2	1
IPE270		270	135	6.6	10.2	15	36.1	1.041	4595	2214	2754	57.90	112.3	428.9	484.0	4.199	30.2	62.20	96.95	157.1	23.80	69469	7974	1263.49	351.49	437.26	117.94	133.10	17.11	26.66	a	b	1	2	1
IPE300		300	150	7.1	10.7	15	42.2	1.160	5381	2568	3210	83.56	124.6	557.1	628.4	6.038	33.5	80.50	125.2	197.5	27.82	124260	11520	1479.83	407.75	509.66	153.20	172.80	22.14	34.44	a	b	1	2	1
IPE330		330	160	7.5	11.5	18	49.1	1.254	6261	3081	3680	117.7	137.1	713.1	804.3	7.881	35.5	98.52	153.7	275.9	36.79	196090	15490	1721.67	489.15	584.28	196.12	221.19	27.09	42.26	a	b	1	3	1
IPE360		360	170	8.0	12.7	18	57.1	1.353	7273	3514	4318	162.7	149.5	903.6	1019	10.43	37.9	122.8	191.1	370.8	46.35	309370	21070	2000.05	557.88	685.57	248.50	280.27	33.76	52.55	a	b	1	3	1
IPE400		400	180	8.6	13.5	21	66.3	1.467	8446	4269	4860	231.3	165.5	1156	1307	13.18	39.5	146.4	229.0	504.1	58.62	482890	27930	2322.75	677.87	771.63	318.02	359.47	40.27	62.98	a	b	1	3	1
IPE450		450	190	9.4	14.6	21	77.6	1.605	9882	5085	5548	337.4	184.8	1500	1702	16.76	41.2	176.4	276.4	660.5	70.27	780970	37970	2717.57	807.28	880.86	412.41	467.99	48.51	76.00	a	b	1	4	1
IPE500		500	200	10.2	16.0	21	90.7	1.744	11552	5987	6400	482.0	204.3	1928	2194	21.42	43.1	214.2	335.9	886.2	86.88	1235400	51280	3176.84	950.62	1016.14	530.18	603.38	58.90	92.37	a	b	1	4	1
IPE550		550	210	11.1	17.2	24	105.5	1.877	13442	7234	7224	671.2	223.5	2441	2787	26.68	44.5	254.1	400.5	1217	109.6	1861500	66890	3696.44	1148.57	1146.96	671.17	766.43	69.87	110.15	a	b	1	4	1
IPE600		600	220	12.0	19.0	24	122.4	2.015	15598	8378	8360	920.8	243.0	3069	3512	33.87	46.6	307.9	485.6	1646	137.2	2814700	88510	4289.57	1330.26	1327.33	844.10	965.91	84.68	133.55	a	b	1	4	1
